Super Lowest Price Solar LED Street Light Price - 80W Solar Street Light For Road – Xintong Detail:

Product Display

1649825566(1)

Product Description

1649826475(1)

Overview

The Solar LED street lights are using Latest N Series

High effiffifficacy LED Luminaire, providing excellent lumen output, long-lasƟng stability and splendid sight.

Combined with Lithium baƩery and Mono Solar Panels to ensure the long life and high effiffifficacy of system.

Provide 3 years warranty on whole system.

Color OpƟons

1649827797(1)

HIGH EFFICACY LED CHIPS

1649834553(1)_副本

SELF-CLEANING DESIGN

1649834599(1)_副本

SMART DESIGN

WATERPROOF ALUMINUM BOX WITH LITHIUM BATTERY AND CHARGE CONTROLLER

1649835226(1)
Main Features
▪ Adopts MPPT charging method,which increases the uƟlizaƟon of solar panel.
▪ Lithium baƩery low temperature charging protecƟon, which effffecƟvely protects the baƩery .
▪ Intelligent compuƟng, detecƟng the raƟo of charge and discharge, to achieve the lights stay on 365 days.
▪ If no charge within 24 hours, the system automaƟcally goes into hibernaƟon, easy to transport long-distance,
long-term storage to avoid causing baƩery bursts.
▪ Realize Bluetooth communicaƟon between the mobile phone and the system, users can customize the lighƟng
mode and view the system operaƟon in real Ɵme.
▪ Integrated BaƩery Management System (BMS) which monitors the health, charging and discharging of the
baƩery pack. This safeguards the cells so that they are not over charged or discharged, maximising their lifeƟme.
▪ Overheat protecƟon funcƟon, when the controller reaches a certain temperature, it will decrease or close the load.
▪ Working status indicaƟon, easy to maintain.
HIGH EFFICACY SOLAR PANEL
1649835532(1)
OPTIONAL ACCESSORIES
1649835567(1)
1649835822

Electriccal & Photometric

Model Power Luminaire efficacy (+/- 5%) Lumen Output (+/- 5%) Solar Panel Spec. Battery Spec. (Lithium) Constant worktime at 100% power Charge Time Working Environment Storage Temperature Rating CRI Material
XT-LD20N 20W 175 /180 lm /w 3500 /3600 lm 60W Monocrystal 66AH /3.2V 8.5 Hours 5 Hours 0 ºC ~ +60 ºC 10%~90%RH -40 ºC ~ +50 ºC IP66 IK10 >70 Housing:
Die-cast aluminum
Lens:
PC
XT-LD30N 30W 170 /175 lm /w 5100 /5250 lm 80W Monocrystal 93AH /3.2V 8 Hours 5 Hours
XT-LD40N 40W 165 /170 lm /w 6600 /6800 lm 120W Monocrystal 50AH /12.8V 12.5 Hours 5 Hours
XT-LD50N 50W 160 /165 lm /w 8000 /8250 lm 150W Monocrystal 50AH /12.8V 10 Hours 5 Hours

Working Environment & Packing

Model Product Dimensions(Lamp /Solar Panel /Battery) (mm) Carton Size(Lamp /Solar Panel /Battery) (mm) N.W(Lamp /Solar Panel /Battery) (kg) G.W(Lamp /Solar Panel /Battery) (kg)
XT-LD20N 284*166*68 /670*620*450*640 /220*113*77 290*180*100 /715*635*110 /350*100*130 1.0 /4.3 /2.66 1.53 /7.0 /4.0
XT-LD30N 284*166*68 /670*790*450*640/220*113*77 290*180*100 /805*715*110 /350*100*130 1.0 /5.6 /3.54 1.53 /8.6 /5.5
XT-LD40N 284*166*68 /670*1095*450*640 /320*195*95 290*180*100 /1110*715*110 /400*230*270 1.0 /7.6 /6.86 1.53 /12.0 /9.0
XT-LD50N 284*166*68 /670*1330*450*640 /320*195*95 290*180*100 /1345*715*110/400*230*270 1.0 /9.1 /6.86 1.53 /15.0/ 9.0

Note: Above data of weight are all typical values.

Optics

1649831334(1)_副本_副本
1649828900(1)
1649828931(1)

Solar Street Light System

1649828456(1)

Customized service

Due to each city has its own sunshine condiƟon, and customers have difffferent working hours
and rainy days on request.
If you want to know more exact confifiguraƟon, please contact us for below quesƟons:
1. What is the geographical locaƟon your solar LED street lighƟng system will be installed?
2. How many hours per night the LED street light works?
3. How many days to backup in case of conƟnuous rainy days?
4. Do you need dimming the LED street light (during the offff-peak hours)?
5. Do you have any other requirements?

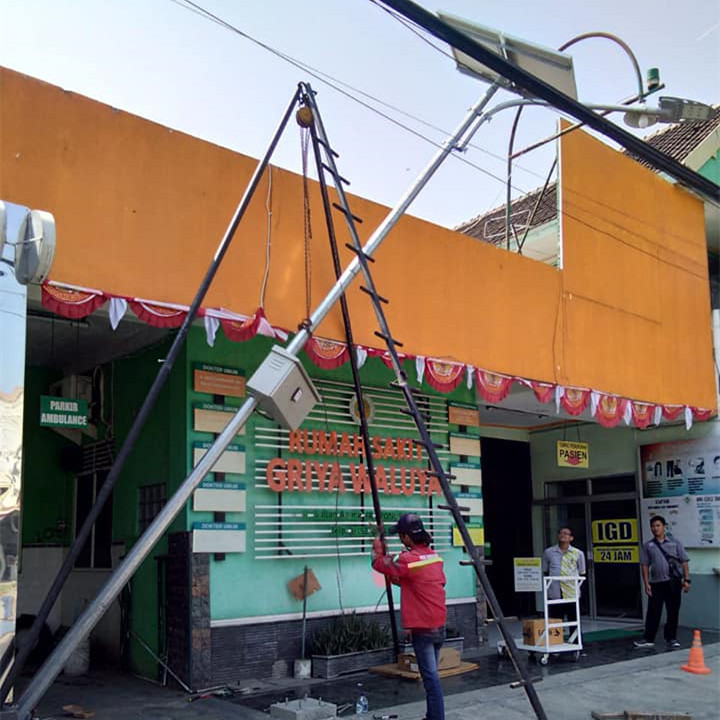

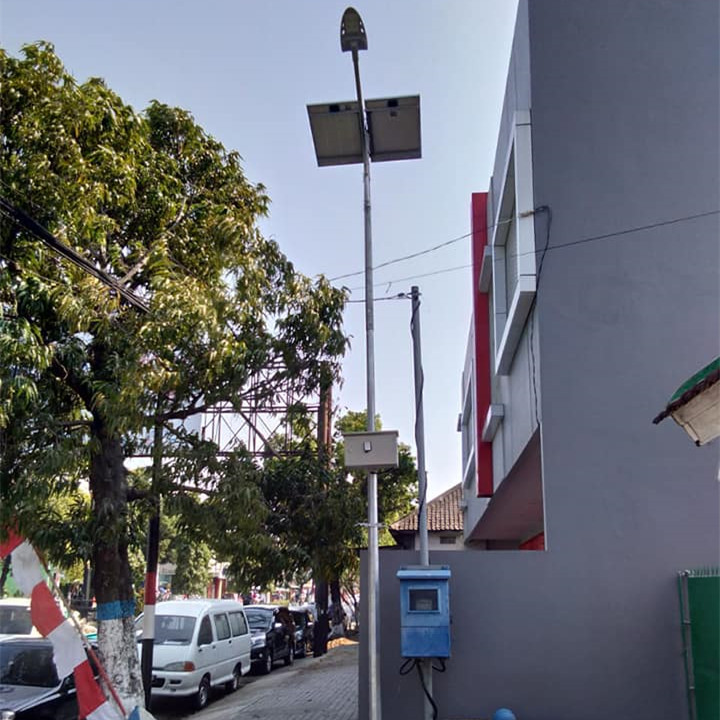

Product detail pictures:

Super Lowest Price  Solar LED Street Light Price  - 80W Solar Street Light For Road – Xintong detail pictures

Super Lowest Price  Solar LED Street Light Price  - 80W Solar Street Light For Road – Xintong detail pictures

Super Lowest Price  Solar LED Street Light Price  - 80W Solar Street Light For Road – Xintong detail pictures

Super Lowest Price  Solar LED Street Light Price  - 80W Solar Street Light For Road – Xintong detail pictures

Super Lowest Price  Solar LED Street Light Price  - 80W Solar Street Light For Road – Xintong detail pictures
